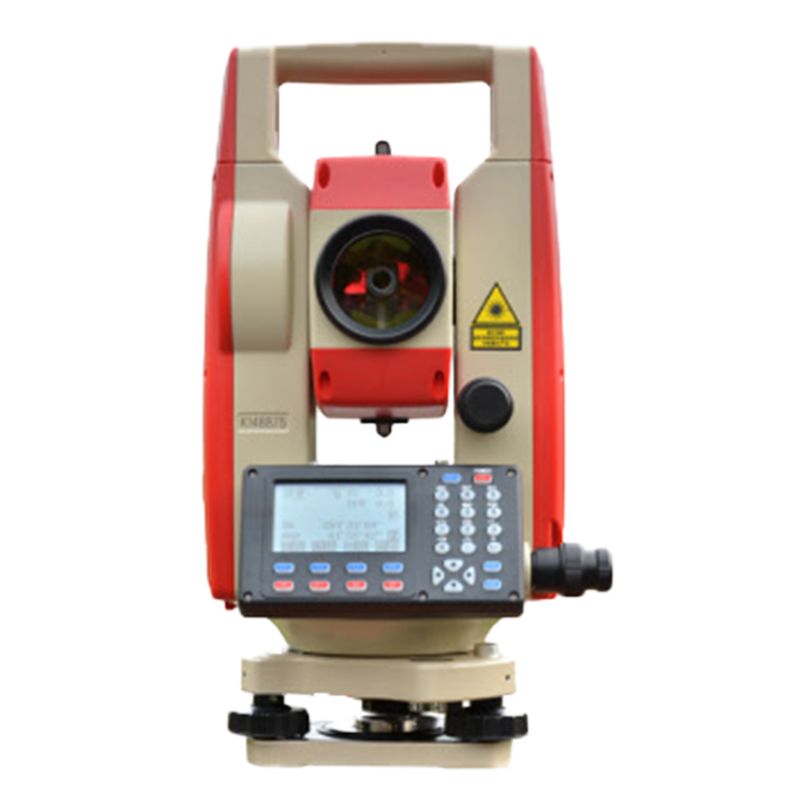

Specification Total Station Kolida KTS-442UT
Measuring Range
1P : 5.0km
3P : 8-10km
Non prism : 1000m (1500m optional)
Digital Display : Maximum: 99999999.9999 Minimum: 0.1mm
Accuracy : With prism: 2mm+2ppm, without prism 3mm+2ppm
Atmospheric Correction : Automatic Correction by Inputting Parameter
Prism Constant : Automatic Correction by Inputting Parameter
Angle Measurement
Measurement Method : Absolute Encoding
Diameter of The Raster Disk : 79mm
Minimum Reading : 1＂/ 5＂ Optional
Accuracy : 2"
Detection Method : Horizontal: Four Sensors Vertical: Four Sensors
Telescope
Image : Erect
Length : 154mm
Effective Aperture : 45mm (DTM 50mm)
Magnification : 30x
Field of View : 1" 30'
Resolving Power : 3"
Minimum Focus : 1m
Compensation
System : Dual axis liquid-electric
Working Range : ± 3'
Resolving Power : 1"
Sensitivity of Vials
Plate Vial : 30"/2mm
Circular Vial : 8' /2mm
Laser Plummet : Yes
Data Storage and Communication
Internal Memory : 12MB (up to 100,000 points)
External Memory : USB Flash Disk (up to 256 GB)
Communication Port : USB, Bluetooth
Display
Type : Dual sides, 6 lines, black and white
Battery
Power Supply : Rechargeable battery (3100mAH)
Voltage : 7.4V DC
Operation Time : 10 hours
Dimension and Weight
Dimension : 160mm×150mm×330mm
Weight : 5.7 kg
Environmental Specification
Dust/Water (IEC60529) :IP66
Working Temperature Range : -20°C~50°C
Humidity : 95%, non-condensing
