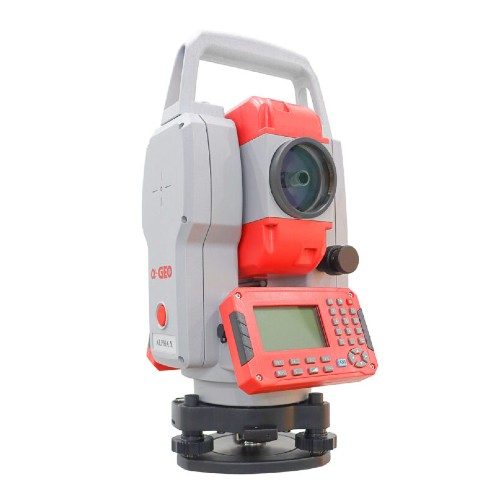

Total Station Alpha-Geo X adalah instrumen survei canggih yang dilengkapi dengan jangkauan pengukuran tanpa reflektor hingga 1000 meter. Nikmati transfer data yang lancar dengan konektivitas Bluetooth internal dan opsi untuk pengoperasian tanpa kabel. Kompatibel dengan perangkat lunak AlphaGEO Surpro6.0, total station ini juga dapat dikontrol melalui pengumpul data untuk fungsionalitas yang lebih baik. Rasakan presisi dan kemudahan yang belum pernah ada sebelumnya. Alpha-Geo X dilengkapai Alphanumeric keyboard Reflectorless Measuring distance:1000m Bluetooth cable-free connection(standard) Can be operated with data collector(AlphaGEO Surpro 6.0 software supported) Spesifikasi Total Station Alpha-Geo X General Height [m] 0.34 Width [m] 0.175 Depth [m] 0.297 Weight [kg] 0.178 Year of introduction 2023 User Interface Number of rows 6 Distance Measurement with Prism Standard deviation: constant part [mm] 2 Standard deviation: variable part [ppm} 2 Division [mm] 2 Maximum range with 1 standard prism [m] 5000 Maximum range with 1 mini prism [m] 5000 Maximum range with combined prisms [m] 5000 No. prisms for maximum range 1000 Prism EDM Range [m] 5000 Prism EDM Accuracy [mm] 2 Measuring Time [s] 1.2 Data Storage & Connectivity SD Card [Y/N] ✓ USB [Y/N] ✓ RS-232 /422 Serial [Y/N] ✓ Bluetooth {Y/N} ✓ Operation Minimum working temperature [degC] -40 Maximum working temperature [degC] 60 IP dust/water protection class [IPxx] IP5 Distance Measurement without Prism Standard deviation: constant part [mm] 2 Standard deviation: variable part [ppm] 2 Maximum range on Kodak gray [m] 1000 Maximum range on Kodak white [m] 1200 Non-Prism Range [m] 1000 Non-Prism Accuracy [mm] 2 Power Supply Battery 3400mAh Li -ion Rechargeable Max. operation time on one battery [hr] 20 Support Standard warranty [years] 1 Angle Measurement Standard deviation [arcsec] 2 Division [arcsec] 2 Standard deviations of other versions in serie 2 Compensation 3 More information Distinguishable features Android Surpro6.0 software supported Connectivity Bluetooth Y USB Yes RS232 Yes Paket termasuk: Total Station Alpha-Geo X 2x Aluminium Tripod Prisma Polygon Prisma Detail Range Pole Charger Battery Flashdisk 4GB CD Software Sertifikat Kalibrasi Produk Terkait
