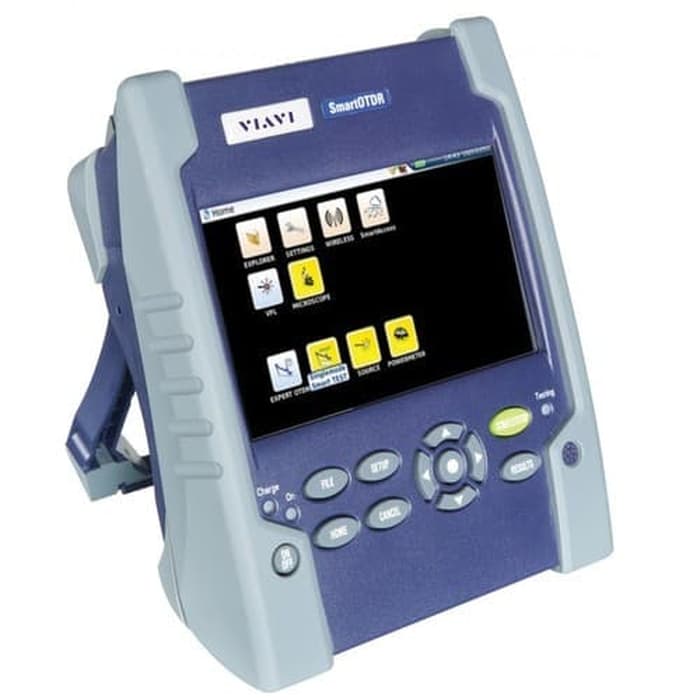

Spesifikasi SmartOTDR VIAVI 100AS :

Product Details
Part Number : SmartOTDR 100AS
Manufacturer : Viavi Solutions Inc.
Description : 1310 to 1550 nm Wavelength Range 30 dB Dynamic Range Handheld OTDR

Environmental Conditions
Operating Temperature display : -20 to 50 Degree C
Storage Temperature : -20 to 60 Degree C

Connections & Interface
Wireless Interface : WiFi, Bluetooth

• General Parameters
  Equipment Type : Handheld
  Event Dead Zone : 1.35 m
  Attenuation Dead Zone : 4 m
  Optical Wavelength : 1310 to 1550 nm
  Battery Body Material : Lithium-polymer
  Measurement Range : -55 to 0 dBm
  Display : 5-inch capacitive color touch screen (12.5 cm), 800 x 480 W VGA
  Distance Accuracy : (±1 m) ± (sampling resolution) ±(1.10-5 x distance)
  Fiber Type : Single Mode
  Battery working and charging time : 20 Hr (Operating)
  Laser Safety : Class 1
  Linearity : ±0.04 dB
  Dynamic Range : 30 dB
  Memory Capacity : 10000 traces
  Modulation : 270 Hz to 2 kHz
  Pulse Width : 5 ns to 20 µs
  Accuracy : ±0.5 dB
  Operation Mode : CW
  Operating Current : 2 A
  Output Power : -3.5 dBm
  Output Stability : ±0.05 dB
  Pixel Resolution : 800 x 480 pixels
  Power Consumption : 24 W
  Power Supply : 100 to 240 VAC, 50 to 60 Hz
  Sampling Point : Upto 256000 points
  Sampling Resolution : 4 cm
  DC Voltage : 12 VDC
  VFL(Launching Mode) : CW, 1 Hz
  Wavelength accuracy : ±20 nm
