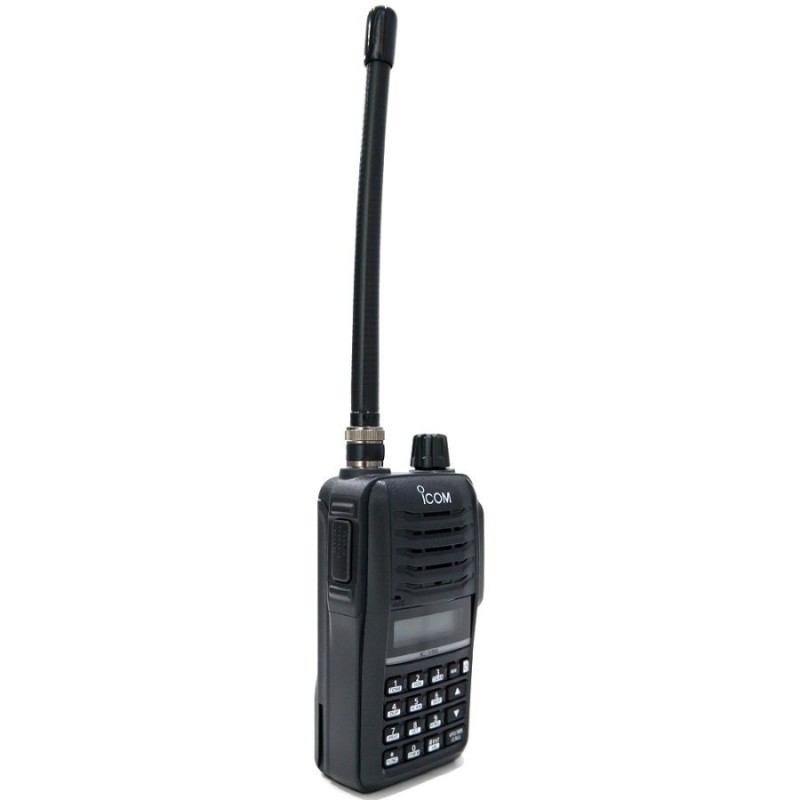

HT Icom IC-V86 memberi Anda lebih banyak audio, lebih banyak daya RF, lebih banyak jangkauan, dan lebih banyak kapasitas baterai dalam perangkat portabel MIL-STD yang ringkas. Dengan daya audio penerima 1,5W dan desain sasis baru, IC-V86 memungkinkan pengguna mendengar sinyal masuk di lingkungan yang keras dan bising. IC-V86 memperluas jangkauan radio pengguna dengan daya keluaran RF 7W dan paket baterai Li-Ion 2250mAh yang baru memberikan kemampuan operasional yang lebih lama.
- Output power: 7 Watt
- Frekuensi VHF: 136-174 MHz
- Saluran: 207 (200 regular, 6 scan edge, 1 call)
- Peringkat tahan air: IP54
Fitur Termasuk:
- Level volume yang dapat dipilih, kontrol pemilihan saluran VFO/memori
- Fungsi VOX terintegrasi
- Encoder/decoder dan pemindaian nada CTCSS/DTCS bawaan
Spesifikasi HT Icom IC-V86
| General | ||
| Frequency coverage (Guaranteed) | ||
| TX: | 144–148 MHz | |
| RX: | 136–174 MHz | |
| Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) | |
| Type of emissions | F2D, F3E (FM, FM-N) | |
| Power supply requirement | 7.5V DC | |
| Frequency stability | ±2.5 ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) | |
| Current drain | ||
| TX (EX Hi/Hi/Mid/Low) | 1.6/1.4/1.0/0.5 A typical | |
| RX (Max. audio) | 450 mA typ. (INT SP), | |
| 200 mA typ. (EXT SP) | ||
| Antenna impedance | 50Ω | |
| Operating temperature range | -20°C to 60°C; –4°F to +140°F | |
| Dimensions (W×H×D) | 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) | |
| (Projections not included) | ||
| Weight (Approximate) | 300 g, 10.6 oz (with BP-298, FA-B57V) | |
| Transmitter | ||
| Output power | *7.0/5.5/2.5/0.5 W (EX Hi/Hi/Mid/Low) | |
| Max. frequency deviation | ± 5.0kHz/±2.5kHz (Wide/Narrow) | |
| Spurious emissions | ‘ -60 dB | |
| Ext. microphone connector | 3-conductor 2.5 (d) mm (1⁄10″)⁄2.2 kΩ | |
| Receiver | ||
| Sensitivity | –124 dBm typical | |
| Squelch sensitivity | –126 dBm typical | |
| Selectivity (Wide / Narrow) | 75 dB typical / 70 dB typ. | |
| Intermodulation | 65 dB typical | |
| Ext. speaker connector | 3-conductor 3.5 (d) mm (1⁄8″)/ 8Ω | |
| Audio output power | ||
| Internal SP (w/8Ω load) | 1500 mW typical | |
| External SP (w/8Ω load) | 550 mW typical | |
