HT ICOM IC-G86 VHF adalah Alat Komunikasi Radio HT yang handal dengan Audio Lebih Keras dan Jernih serta Jarak Lebih Jauh. Dengan harga murah ekonomis dan bergaransi selama 1 Tahun distributor Icom Indonesia. Oleh karena itu, IC-G86 ini banyak di gunakan di berbagai negara di dunia.
Features :

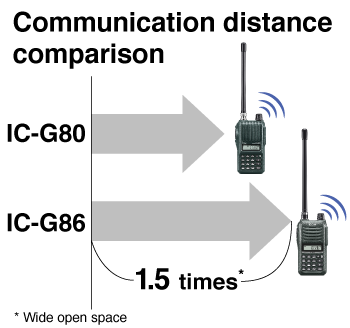

7 W Output Power Plus New Antenna Provides 1.5 Times* More Communication Distance
1500 mW Powerful Audio and 1.5 Times* Higher Sound Pressure
Optional 1500 mW Speaker-Microphone, HM-222HLWP
Dust-Protection, Water Resistance and a Tough Body (IP54 and MIL-STD 810G)
19 Hours* of Long Lasting Battery Life
200 Channels with 5-character Alphanumeric Display
Automatic DTMF Transmission linked to PTT ( on Pressing PTT (Log-in) / on Releasing PTT (Log-off) )
Durable BNC Type Antenna Connector
Made in Japan Quality and Reliability
Spesifikasi HT Icom IC-G86 VHF Radio :
| Frequency range (TX/RX guaranteed range) |
136–174 MHz (EX Hi power TX : 144–160 MHz) |
||
|---|---|---|---|
| Type of emissions | F2D, F3E (FM, FM-N) | ||
| Number of channels | 200 channels | ||
| Antenna impedance | 50 Ω | ||
| Power supply requirement | 7.5 V DC | ||
| Operating temperature range | –20˚C to +60˚C, –4°F to +140°F | ||
| Frequency stability | ±2.5 ppm (–20˚C to +60˚C, –4°F to +140°F) | ||
| Current drain(For the transceiver with a “U” mark on the serial number label.) | TX (EX Hi/Hi/Mid/Low) |
1.6/1.4/1.0/0.5 A typical EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. |
|
| RX (Max. audio) |
450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end) 450 mA typ. (EXT SP, BTL) |
||
| Dimensions (W×H×D) (Projections not included) | 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) | ||
| Weight (Approximate) | 300 g, 10.6 oz (with BP-298, FA-B57V) | ||
