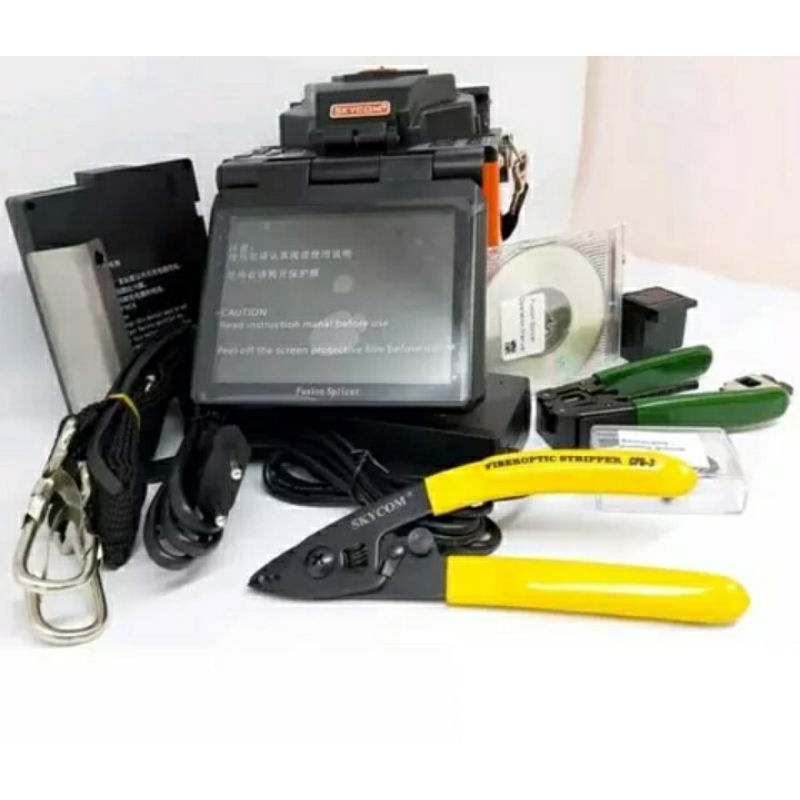

Fusion splicer T-208H adalah kesempurnaan untuk jaringan serat optik metropolitan. Dengan antarmuka yang ramah, kualitas tahan lama, kinerja tinggi dan ekonomi yang baik, T-208H banyak digunakan dalam banyak kesempatan.
Features SKYCOM T208H Fusion Splicer :
• 5 inch high resolution Color LCD display
• Average connection time: 10 seconds
• Average tube-heat time: 30 seconds
• Lithium battery: up to 180 times connection and continuous heat
• X and Y simultaneously viewed with 180x magnification
• Newly developed technology provides wind and dust resistance
• Splicing mode: Automatic & Manual & Full Automation USB ports
• Stores 6,000 groups of connection results.
• Multi-purpose fiber optic fixtures (Such as: Rubberinsulated wire, fiber optic cable, bare fiber)
Specification SKYCOM T208H Fusion Splicer :
MODEL T208
Applicable Fibers SM, MM, NZ-DS, EDF, Pigtail, Rubber insulated wire series
Average Connection Loss 0.02dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF)
60dB return loss
Tension Test 2.0N (200gf) (Standard)
Splicing Program 50 groups
Protection Arm Length 20mm, 40mm, 60mm
Chinese, English
Ambient Condition -10 ~ +50 (operating temperature), 0 ~ 95% RH (humidity), 0 ~ 5000m (altitude)
Power Supply AC adapter: 100~240V input voltage, 50/60Hz; 12V, outputs 5A
voltage (DC)
DC adapter: 12V 8AH voltage
Dimensions 155(W)*165(D)*150(H).
