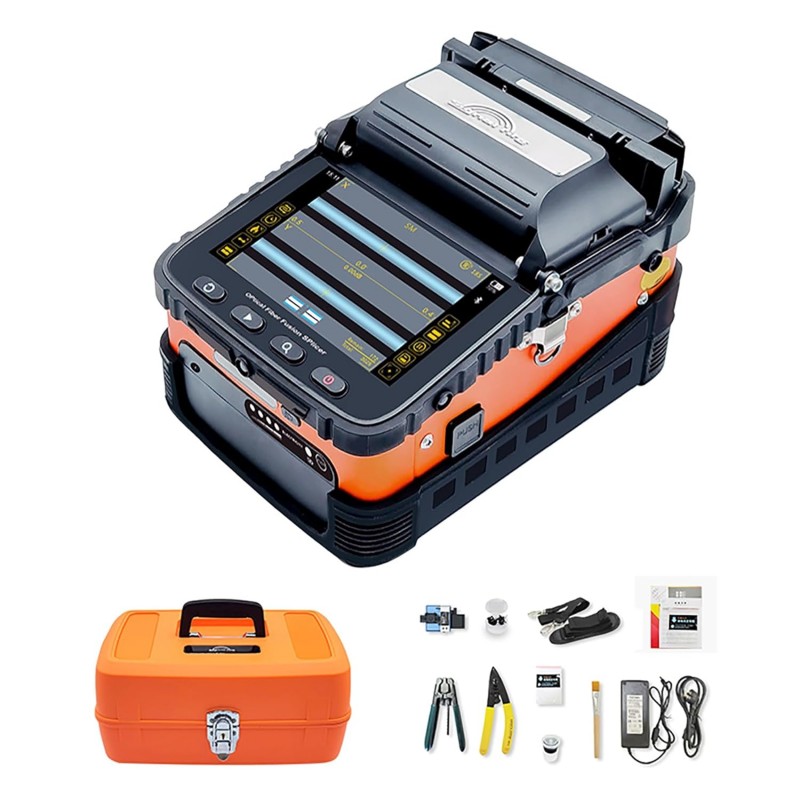

Fusion Splicer Signal Fire AI-6A
Specifications:Fiber Alignment Core alignment, cladding alignment
Motor Number 6 motors
Splicing Time 8S
Heating Time 18S, can be customized according to the external environment
Applicable Fibers Single-mode fiber (SMF/G.652), BIF/G.657); suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion
Cladding Diameter 80~150um
Splice Loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Splicing Mode Automatic focusing core alignment, conventional / high precision welding
Splicing Method Automatic, semi-automatic
Fiber Holder 3-in-1 fiber holder, no need to change, suitable for single/muti-mode, multi-core cable, 250um/900um/2mm/3mm/2*3mm flat drop cable
Inbuilt Battery 5200mAh high capacity lithium battery, charging time ≤3.5 hours, continuous splicing and heating about 160 times
Magnification 320 for X or Y view, 200 for X or Y view
Fiber Diameter Cladding diameter: 80~150um, Coating diameter: 100~1000um
Fiber Cleave Length Coating less than 250um diameter: 8~16mm;
Coating between 250~1000um: 16mm
Tension Test Standard 2N
Protective Sleeve 25/40/45/50/60mm
Screen 5 inch TFT color display
External Lighting USB PORT can be connected with external LED light, convenient for night construction
Charge Mobile Device USB port can charge mobile devices such as mobile phones
Boot Time 1s, boot can enter the working mode
Data Storage Unlimited, machine storage: 1,000 groups, the excess datas can be stored in the server, which can export data.
Wirelss Communication based on bluetooth 4.2 protocol standard, working band: 2.4GHz, maximum transmission range: 60m
Software Upgrade Mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software
Management Function The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. Through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multipleequipment.
Interface USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices
Return Loss Better than 60dB
Product Protection Waterproof, dustproof and fall proof
Power Supply Input: 100~240VAC 50/60Hz, output 13.5VDC, 4.8A, the current power mode can be identified, real-time monitoring of current battery level
Operation Conditions -15~+50℃, 0~95%RH (humidity), 0~5000m (altitude), max. Wind speed: ≤15m/s
Language Setting English, Chinese, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
