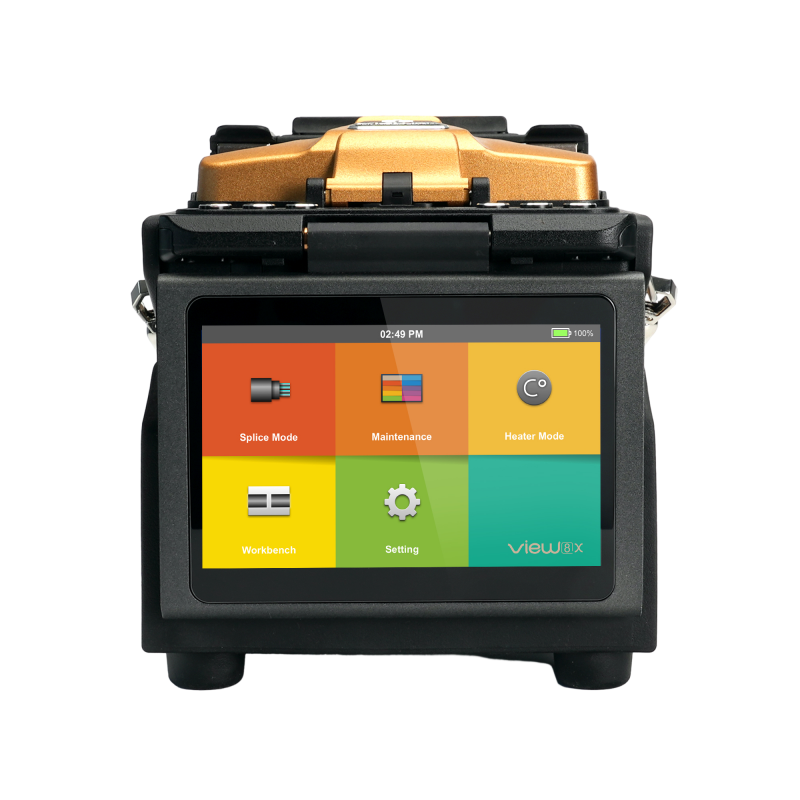

The INNO Instrument VIEW 8X Premium Core Alignment Fusion Splicer is a top-tier device designed for precision and efficiency in fiber optic splicing. Here are its detailed features and specifications:
Key Features:
AI-Driven Splicing: Utilizes artificial intelligence to enhance splicing accuracy and efficiency.
IoT & GPS Integration: Equipped with IoT and GPS modules for real-time tracking and management.
Fast Operation: Splicing time of 4 seconds and heating time of 9 seconds.
High Precision: Ensures ultra-low splice loss for high-quality connections.
User-Friendly Interface: Features a 5-inch high-resolution color LCD touch screen for easy operation.
Durable Design: Built to withstand harsh environments, making it suitable for both field and lab use.
Battery Life: Long-lasting battery that supports up to 355 splicing and heating cycles per charge.
Storage Capacity: Can store up to 10,000 splice results.
Specifications:
Splice Loss: SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB
Fiber Types: SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) / CS (G.654) / EDF / BIF
Fiber Count: Single fiber
Fiber Diameter: Cladding diameter: 80 - 150µm, Coating diameter: 300µm – 3mm
Splice Time: 4 seconds (SM FAST mode)
Heating Time: 9 seconds (60 mm sleeve, FAST mode)
Display: 5-inch color LCD touch screen
Magnification: x360, x520
Battery Capacity: 9000mAh
Weight: 2.68kg (with battery)
Dimensions: 162 (H) x 143 W) x 158 (D) mm
