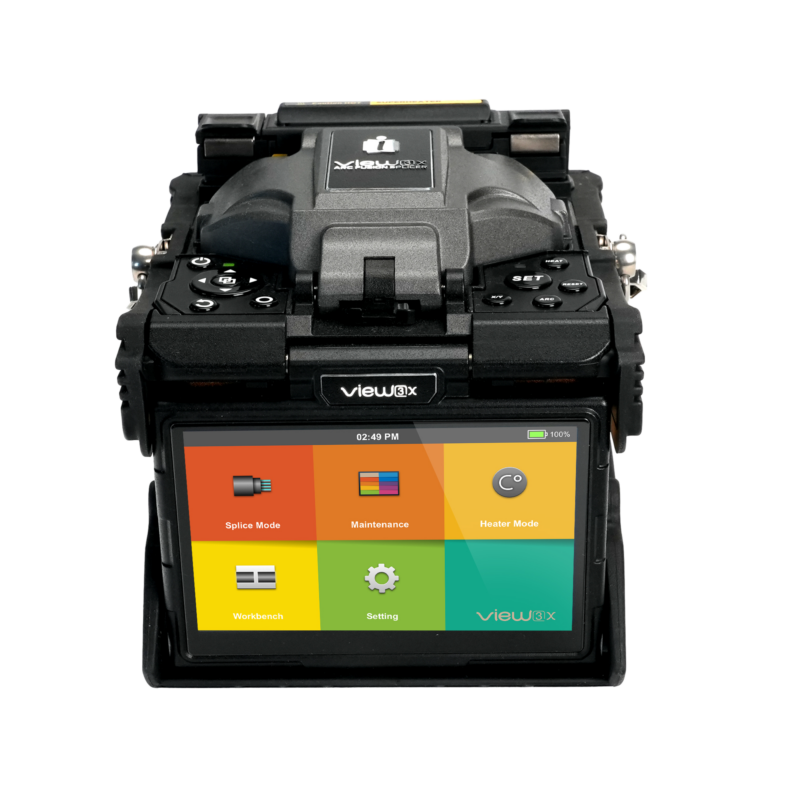

INNO View 3X Fusion Splicer dirancang untuk penyambungan serat optik yang presisi dan efisien untuk memastikan kinerja dan keandalan yang optimal. Oleh karena itu, View 3x ini sangat cocok untuk pekerjaan FTTH.
Specification Overview INNO View 3X
Splicing Technology : Active Cladding Alignment
Splicing Time : 4s
Heating Time : 9s
Typical Loss : SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB
Dimensions
Size (HWD) : H: 151mm W: 149mm D: 177mm
Weight : 2.19kg (with battery)
TECHNICAL SPECIFICATIONS
Model VIEW 3X
Alignment Method : Active V-Groove Clad Alignment
Number of Fibers : Single
Applicable Fibers : SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)
Coating Diameter : 100μm – 3mm
Cladding Diameter : 80 – 150μm
Cleave Length : 5 – 16mm
Typical Splice Loss : SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB
Return Loss : >> 60dB
Splice Time : Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec
Splice Programs : Max 128 modes
Electrode Life span : 6000 Arc Discharges
Heating Programs : Max 32 modes
Heating Time : Quick: 9s / Average: 13s
Protection Sleeve : 20mm – 60mm
Data Output : Cloud (View Pro Manager) + USB-C
Splice Memory : 20,000 Splice data / 10,000 Splice image
Battery : 5200mAh
Power Supply : AC Input 100 – 240V, DC Input 9 – 19V
Monitor : 5.0” Color LCD display, Full Touch Screen
Magnification : x360, x520
Size : 151 x 149 x 177mm
Weight : 2.19kg
Pull Test : 1.96 – 2.25N
