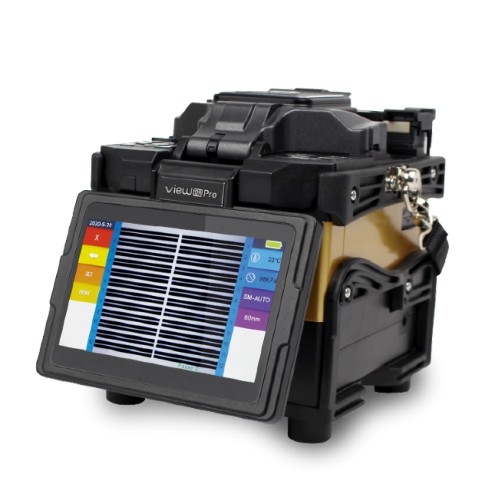

Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer.
The VIEW12R PRO provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles,
and universal holder both for 250μm & 900μm single fiber. The VIEW12R PRO delivers the most reliable work experiences.
Specification INNO VIEW 12R Pro Fusion Splicer :
Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways
Fusion Splicer
| Splicing Technology | 250x magnification |
| Splicing Time | 9 seconds (single fiber) / 15 sec (ribbon fiber) |
| Heating Time | 20 seconds (typical heating time) |
| Typical Loss | SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB / G.657: 0.05dB |
Dimensions
| Size (HWD) | H: 167mm W: 143mm D: 159mm |
| Weight | 2.64kg (with battery) / 1.98kg (without battery) |
