Detail Produk Connector Andrew L4PNM type-N Male, LDF4-50A

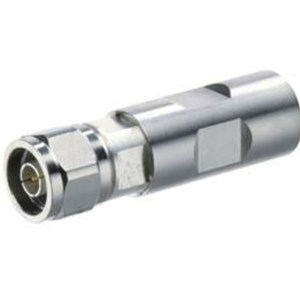

Connector Andrew L4PNM type-N Male, LDF4-50A
General Specifications:
• Interface : N Male
• Body Style : Straight
• Brand : HELIAX® | RingFlare™
• Mounting Angle : Straight
Electrical Specifications:
• Connector Impedance : 50 ohm
• Operating Frequency Band : 0 – 8800 MHz
• Cable Impedance : 50 ohm
• 3rd Order IMD, typical : -120 dBm @ 910 MHz
• 3rd Order IMD Test Method : Two + 43 dBm carriers
• RF Operating Voltage, maximum ( vrms) : 707.00 V
• dc Test Voltage : 2000 V
• Outer Contact Resistance, maximum : 0.30 mOhm
• Inner Contact Resistance, maximum : 2.00 mOhm
• Insulation Resistance, minimum : 5000 MOhm
• Average Power : 0.6 kW @ 900 MHz
• Peak Power, maximum : 10.00 kW
• Insertion Loss, typical : 0.05 dB
• Shielding Effectiveness : -130 dB
