Specifications :
● Bonding Conductor Jacketing Material : PVC
● Bonding Conductor Material : Copper
● Bonding Conductor Wire Size : 16 mm²
● Cable Type : Corrugated
● Color : Black

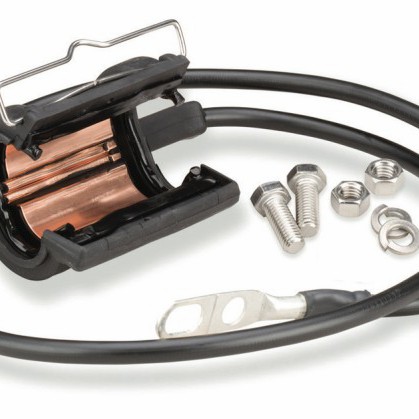

● Grounding Kit Type : Compact SureGround® Grounding Kits
● Grounding Strap Material : Copper
● Lug Attachment : Factory attached
● Lug Type : Two-hole lug
● Thread Size : 3/8 in
Dimensions
● Enclosure Width : 40.64 mm | 1.6 in
● Bonding Conductor Length : 609.6 mm | 24 in
● Cable Jacketing Removal Length, maximum : 58.42 mm | 2.3 in
● Cable Jacketing Removal Length, minimum : 55.88 mm | 2.2 in
● Enclosure Length : 81.28 mm | 3.2 in
● Compatible Diameter, maximum : 28.702 mm | 1.13 in
● Compatible Diameter, minimum : 26.67 mm | 1.05 in
● Nominal Size : 7/8 in
Electrical Specifications
● Current Handling : Tested to withstand 100,000 amps peak current surge
● Current Handling Test Method : MIL-STD-1757
● Grounding, Bonding and Shielding Test Method : MIL-STD-188-124A
● Lightning Protection Test Method : IEC 1024-1
Material Specifications
● Locking Bail Material : Stainless steel
● Rivet Material : Copper
Environmental Specifications
● Operating Temperature : -40 °C to +85 °C
● Storage Temperature : -40 °C to +80 °C
● Weatherproofing Method : Copper strap contact overmolded with EPDM rubber
Packaging and Weights
● Height : 447.04 mm
● Width : 396.24 mm
● Length : 68.58 mm
● Included : Grounding kit | Hardware | Lug
● Packaging quantity : 1
● Weight : 0.36 kg
