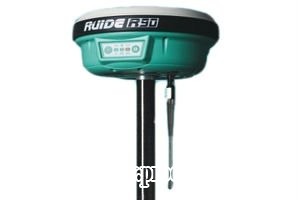

GPS RTK RUIDE R 90 T
RECEIVER

MEASUREMENT

General Information

-220 channels, by advanced Pacific Crest Maxwell 6 Custom Survey GNSS technology.

-High precision multiple correlator for GNSS pseudo range measurements.

-Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response.

-Very low noise GNSS carrier phase measurements with 1mm precision in a 1Hz bandwidth.

-Signal-to-Noise ratios reported in dB-Hz.

-Proven Pacific Crest low elevation tracking technology.

Satellite Signals Tracked Simultaneously

-GPS: L1 C/ A, L2E, L2C, L5 ( reserved)

-GLONASS: L1 C/ A, L1 P, L2C/ A ( GLONASS M only) , L2 P

-SBAS: L1 C/ A, L5 ( reserved)

-Galileo: ( reserved)

Supports GIOVE-A: L1BOC, E5A, E5B, E5AltBOC

Supports GIOVE-B: L1CBOC, E5A, E5B, E5AltBOC

-Compass: ( reserved)

B1 ( QPSK) , B1-MBOC ( 6, 1, 1/ 11) , B1-2 ( QPSK)

B2 ( QPSK) , B2-BOC ( 10, 5) ,

B3 ( QPSK) , B3BOC ( 15, 2.5)

L5 ( QPSK)

Code Differential GNSS Positioning

Horizontal: 25cm+ 1ppm RMS

Vertical: 50cm+ 1ppm RMS

SBAS differential positioning accuracy: typically < 5m 3DRMS

Static and FastStatic GNSS Surveying

Horizontal: 3.0mm+ 0.5ppm RMS

Vertical: 5.0mm+ 0.5ppm RMS

Realtime Kinematic Surveying

Horizontal: 8mm+ 1ppm RMS

Vertical: 15mm+ 1ppm RMS

Initialization time: typically 99.9%

HARDWARE

Physical

Dimension ( L x W x H) : 184mm x 184mm x 96mm ( 7.2in x 7.2in x 3.8in)

Weight: 1.2kg ( 2.64 lb) with internal battery, internal radio

Temperature

Operating: -40 ~ + 75 ( -49F ~ + 167F)

Storage: -55 ~ + 85 ( -67F ~ + 185F)

Humidity: 100% , condensing

Water/ Dustproof: IP67, protected from temporary immersion to depth of 1m ( 3.28ft) .

Shock and vibration: Designed to survive a 2m ( 6.6ft) pole drop onto concrete

Electrical

Power 12-15V DC external power input

Rechargeable, removable 7.4V, 2.5Ah Lithium-ion battery in internal battery compartment.

Battery life: 6-10 hours for 2 batteries from standard supply ( varies with temperature and working mode) .

Communications and Data Storage

Standard USB2.0 port

RS-232 port: Baud rates up to 115200

Stollmann' s BlueMod+ B20 is used inside for Bluetooth function.

Fully sealed and integrated 2.4GHz communication Bluetooth port.

UHF receiving antenna port and GPRS/ GSM signal antenna port.

Fully sealed and integrated MDS series receiver/ transmitter option:

-Optional frequency:

MDA module: 410-430MHz

MDB module: 430-450MHz

MDC module: 450-470MHz

Fully sealed and integrated internal SIEMENS Mc75. GPRS/ GSM module.

External cellphone support for GPRS/ GSM module for network RTK ( CORS) operations.

Network RTK ( via CORS) performance ( varies with temperature and GPRS data rate) : 20-50km

Data storage: internal memory 4GB.

Update Rate: 1Hz, 2Hz, 5 Hz, 10 Hz, 20 Hz, and 50 Hz positioning outputs ( depends on installed option, default 1Hz)

Reference outputs: CMR, CMR+ , RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1

RADIO

Standard GDL20 Radio ( Default configuration)

-Transmit power: 25W

-UHF Range ( varies with terrain and temperature) : 8-10 km typical/ 15-20km optimal

Mini GDL5 Radio ( optional)

-Transmit power: 2/ 5W

-UHF Range ( varies with terrain and temperature) : 3-5km typical/ 8-10km optimal

Mini GDL2 Radio ( optional)

-Transmit power: 0.5/ 2W

-UHF Range ( varies with terrain and temperature) : 3-5km typical/ 8-10km optimal

CONTROLLER :

PSION WORKABOUT PRO3
GETAC PS236
RUIDE S10
