Description:

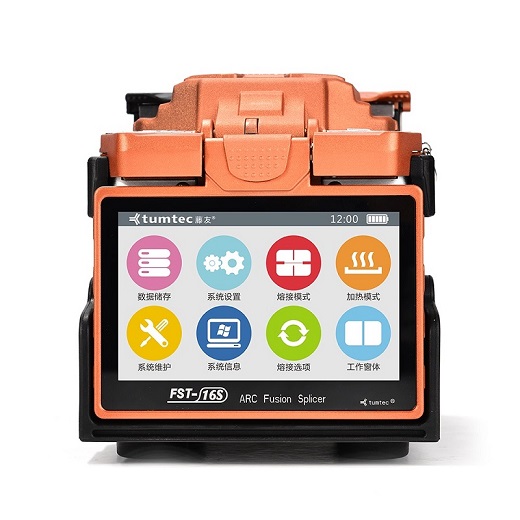

Tumtec Fusion Splicer FST-16S is one of the most powerful and intelligent fusion splicing machines and adopts PAS fiber adjustment technology. It has industrial-level Quad-core CPU( Mainly 1.4 GHz ), featuring low power cost and high performances, equipping with 5” High-Resolution color LED touch screen for easy operations, achieving industry’s magnification of 380X so that fiber conditions can be easily inspected with unaided eyes. With precise Core Alignment Splicing Method and magnification of 380X, FST-16S has become one of the most excellent and reliable fusion splicing machines in global market. It also provides high capacity battery of 6800mAH for working even further in the field, which is typical 230 splicing/heating cycles. Innovative technology brings unlimited convenience. With its excellent and stable performances, FST-16S has become one of the most reliable and effective fusion splicers in global market
Specification:
| Model | FST-16S |
| Dimension | 140W x 165L x 160H mm (including rubber bumper) / 130W x 165L x 150H mm (excluding rubber bumper) |
| Weight | 2.05KG (including rubber bumper) / 1.7KG (excluding rubber bumper)/ 0.38KG (battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm) |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | 8 splicing modes |
| Typical Splice Loss | ≤0.04db (within 1000 fibers) |
| Return Loss | >> 60 dB |
| Lighting | 1 Powerful White LED andilluminated Keypads |
| Splicing Time | 6~8 seconds |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Mode | Multi heating modes |
| Heating Time | typical heating time: 30 sec |
| Results Storage | The last 3000 results |
| Tension Test | 2.0~2.3N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” 800*480 Color High Resolution Display with touch screen |
| Fiber View & Magnification | X, Y, XY, X/Y : 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| No of Splice / Heating with Battery | 6800mAh Battery Capacity, Typical above 230 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / Phone Jack |
Item Including:
| Fusion Splicer | Tumtec FST-16S | 1 |
| High Precision Cleaver | TC-7S | 1 |
| Fiber Holder | FC16-02 | 1 |
| SOC Heater Cover | TC-SOC | 1 |
| AC Adapter | 1530-3c2.5 | 1 |
| Cooling Tray | CY-16 | 1 |
| Electrode | T-68 | 1 |
| Fiber Optic Stripper | F-33 | 1 |
| Battery Pack | LBY-68 | 1 |
| Power Cable | AC220V | 1 |
| Manual book | Manual | 1 |
| Manual CD | CD | 1 |
| Carrying Case | TYB-18 | 1 |
